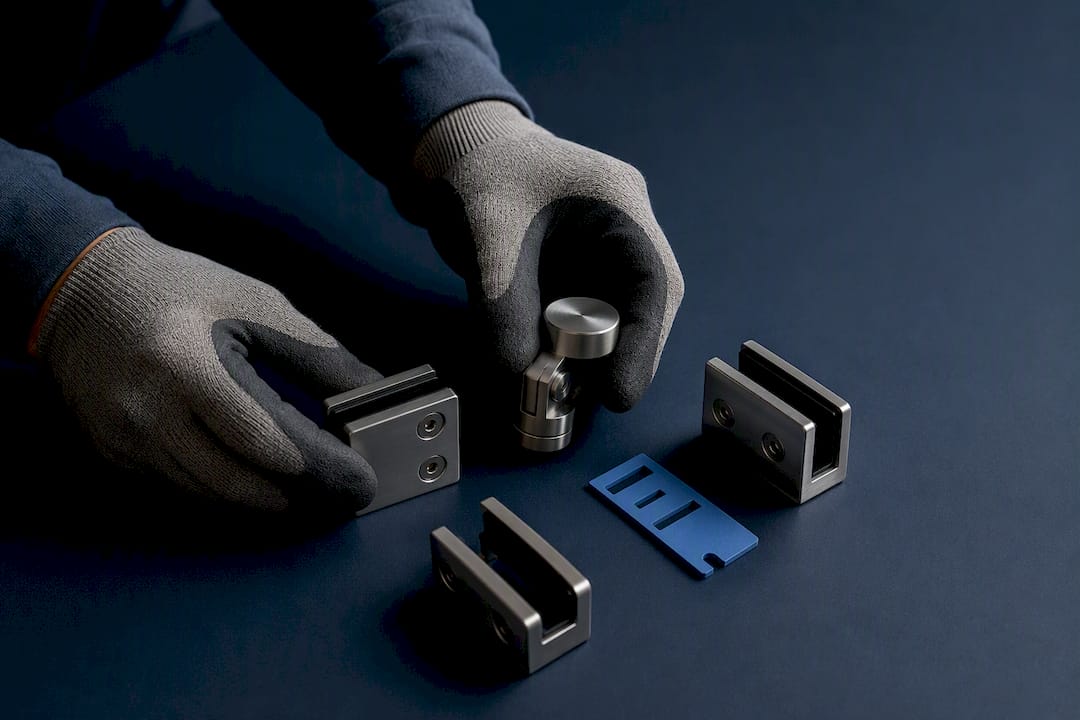

Contractor comparing glass railing connector components

Before Ordering: 6 Glass Railing Connectors Contractors Must Verify

Most glass railing projects rely on one of six connector families: glass clamps, spigots, patch fittings, channel or base shoe systems, glass-to-glass connectors, and adjustable connectors. The right choice comes down to three questions: what mounting method fits your structure, whether your glass is drilled or undrilled, and what your local code requires for loads and top rails. Get those three right first, then narrow by material and finish.

TL;DR:

  • Pool fencing and high-humidity environments benefit from marine-grade 316 stainless steel connectors due to their superior corrosion resistance.
  • Continuous glass runs on elevated decks typically require channel or base shoe systems for minimal visible hardware and even load distribution.
  • Patch fittings demand precisely drilled glass and are suitable for transition points, whereas clamps are easier to install on undrilled, polished-edge panels for interior applications.
  • Local code requirements often mandate a top rail or handrail unless using laminated glass panels with two or more plies.
  • Always confirm substrate thickness, drilled-hole tolerances, and finish from the manufacturer before ordering hardware to avoid costly rework or installation issues.
Glassrailingstore
Plan Your Glass Railing Project
Explore glass panels, connectors, hardware, and installation resources for residential and commercial railing projects.
Explore glass railing solutions

Table of Contents

What glass connectors do and where mounting differs

A connector’s job is simple in concept: transfer the load from the glass panel into the structure, hold panels in consistent alignment, allow for minor angle or movement where needed, and do it all without a bulky frame blocking the view. The mounting context changes which family fits best. A pool fence usually calls for a top-mount spigot bolted to a deck slab, since it clears standing water and simplifies drainage. A long stretch of continuous glass on an elevated deck often does better with a channel system, which hides the hardware and supports the panel edge to edge. Interior stairs frequently use clamps because they are compact and easy to adjust without disturbing finished flooring.

  • Deck and balcony runs: channel or base shoe systems support continuous glass with minimal visible hardware.
  • Pool enclosures: top-mount spigots handle drainage and direct anchoring to concrete or decking.
  • Interior stairs: glass clamps or D-clamps allow tighter spacing and easier field adjustment.
  • Coastal or high-humidity sites: 316 stainless steel resists corrosion better than 304, which is fine for typical dry interiors.

Six connector types and what to check before you buy

Each connector family has its own glass prep requirements, thickness range, and best-fit application. Here is what to verify before placing an order.

  1. Glass clamps and D-clamps: These grip the panel edge without drilling, which makes them a common choice for interior stairs and light-duty railings. Most clamps accept glass in the 3/8 inch to 1/2 inch range and work best with a polished or seamed edge so the clamp seats cleanly. Stainless steel finishes (polished or brushed) are standard, and spacing between clamps should follow the manufacturer’s span rating rather than a guess based on appearance.
  2. Spigots: These are base-mounted posts that bolt directly into a deck, slab, or stair stringer, then grip the glass from below. Anchoring into concrete requires the right substrate, typically a minimum slab thickness and edge distance from the concrete perimeter. Spigots suit decks and pool fencing well because they allow water to drain freely and keep the sightline low, though the exposed base makes marine-grade hardware worth the extra cost near saltwater or pool chemicals.
  3. Patch fittings: Commonly used where glass panels meet doors or transition points, patch fittings require precisely drilled holes in the glass, so alignment tolerances matter more here than with clamp-based systems. Because they bear concentrated loads at a fixed point, panel thickness and drill placement need to match the fitting manufacturer’s specification exactly, not an approximation.
  4. Channel and base shoe systems: These run continuously along the base of the glass, distributing the load across the full panel edge rather than at discrete points. Some channel systems use hidden hardware and a wet-set or dry-set glazing method, while others pair with a visible cap rail for extra rigidity. Glazing tape or setting blocks combined with mechanical anchors are typical, and the choice depends on whether the top edge will carry a handrail.
  5. Glass-to-glass connectors: These join adjacent panels in a straight or angled butt joint without an intermediate post, which keeps the view uninterrupted. They generally work within a defined glass thickness range, and angled versions become necessary on stair runs where each panel follows the pitch of the treads.
  6. Adjustable connectors: Built with a pivoting or slotted mechanism, these accommodate angle changes on stairs or sloped top rails without requiring custom-cut glass for every step. A locking mechanism holds the set angle permanently once adjusted, and checking that lock before final tightening avoids a wobble that shows up months later.

Pro Tip: Order one sample connector in the finish and size you plan to use, and test-fit it against a scrap piece of glass before committing to a full order, since drilled-hole tolerances vary slightly between manufacturers.

How to choose connectors by material, glass, and load

Start with mounting method and installer capacity: undrilled clamp systems are easier for a confident DIYer, while patch fittings and some spigots demand precision drilling best left to a fabricator. From there, match material to environment and glass to code.

  • Stainless steel grade: 316 stainless is the better choice for exterior, coastal, or pool applications because of its stronger resistance to corrosion in marine environments; 304 stainless is adequate for typical interior use.
  • Anodized aluminum: A lighter, lower-cost option for some channel systems, though it trades some of the corrosion resistance of marine-grade stainless.
  • Glass type: Tempered glass covers most railing applications, while laminated glass becomes the better choice when code or safety goals call for eliminating a top rail.
  • Thickness and support: Thicker panels (often 1/2 inch and above) may need the continuous support a channel or spigot system provides rather than point-load clamps alone.

The IBC requires guards and handrails to resist a 50 plf load at the top and a 200-pound concentrated load, and these figures directly drive how connectors and anchors get sized for a given span, according to American Wood Council guidance. Inspect exposed hardware periodically for corrosion, loose fasteners, or gasket wear, especially in coastal or pool settings where salt and chlorine accelerate breakdown.

Installation and compatibility checks that matter

Getting the connector right on paper is only half the job. The installation details decide whether it performs as specified.

  1. Drilling and hole placement: Patch fittings and some glass-to-glass connectors require precisely placed drilled holes, and moving a hole too close to the panel edge weakens the glass around it.
  2. Fastener backing and substrate: Spigots and base shoes need adequate substrate, whether that is a concrete slab of sufficient thickness or a properly blocked stair stringer, and torque specs should follow the manufacturer’s documentation rather than a general rule of thumb.
  3. Gaskets and isolators: Rubber gaskets, glazing tape, and isolating pads keep glass from touching metal directly, which prevents point loading and galvanic corrosion where dissimilar metals meet.
  4. Thermal movement: Long exterior runs need small allowances for expansion and contraction, particularly with aluminum channel systems exposed to temperature swings.
  5. When to call a professional: Structural glass balusters, load calculations, and anchoring into unfamiliar substrates are worth handing to a structural engineer or experienced installer rather than guessing.

Pro Tip: Before ordering hardware, confirm your substrate thickness and edge distances with a contractor. Reworking a spigot base after the concrete is poured costs far more than getting the spec right up front.

What the code says about top rails and structural glass

Code compliance shapes connector choice as much as aesthetics do. The 2018 ICC change to R308.4.4 requires that guards using structural glass baluster panels have an attached top rail or handrail, unless the panels are laminated glass with two or more plies, according to the ICC code change summary. That single rule affects connector selection directly: if you want to skip the top rail for a cleaner look, you need laminated glass and connectors that can carry the load without rail assistance. If you plan to keep a top rail, your connector and channel system need to allow secure rail anchoring into adjacent posts.

Structural glass baluster panels require an attached top rail or handrail unless the panels are laminated glass with two or more plies.

Our top rail requirements page walks through this decision in more depth, and our code and permitting summary is a good starting point before you order. Local code enforcement varies, so verify permit requirements with your jurisdiction before finalizing a connector spec, and check the handrail height checklist for inspection guidance if you are preparing for a formal inspection.

Cost range and price comparison for different connector types

Connector pricing tracks complexity and material grade more than anything else. Glass clamps and D-clamps sit at the lower end since they require no drilling and use straightforward hardware, while patch fittings and adjustable connectors cost more because of the precision machining and locking mechanisms involved. Spigots fall in the middle to upper range depending on whether they are surface-mounted or core-drilled into concrete, with marine-grade 316 stainless commanding a premium over standard 304.

Channel and base shoe systems often price out closer to the overall railing budget than as a standalone line item, since they are sold as part of a continuous glazing system rather than per connector. For a broader sense of what a finished railing costs by system type, framed glass railings run in the range of approximately one hundred to a bit over one hundred dollars per linear foot, semi-frameless systems generally cost more per linear foot, and DIY glass panel kits tend to be less expensive, all according to the Glass Railing Store’s cost breakdown. Frameless systems are priced on request given the range of custom configurations involved.

Comparison of glass railing connector cost tiers

Marine-grade hardware costs more upfront than standard stainless, but it typically reduces long-term maintenance and the risk of corrosion-related failure in exterior or pool settings, which often justifies the difference for anyone planning to keep the railing in place for years.

A specifier’s take on getting connectors right

Most connector failures trace back to a mismatch between glass prep and hardware choice, not a defect in the hardware itself. Someone orders undrilled panels for a patch fitting system, or specifies 304 stainless for a pool deck, and the fix costs far more than getting it right the first time. Three habits help: specify marine-grade hardware whenever the installation sits within reach of pool chemicals or salt air, confirm drilled-hole diameter and placement with the glass fabricator before cutting anything, and default to laminated glass whenever a top rail would compromise the look you are after.

For channel infill options and deeper code discussion, our channel infill guide and structural reinforcement guide cover the technical details that a short connector overview cannot.

— Fuanne

How Glass Railing Store helps you choose and order

We sell framed, semi-frameless, and frameless glass railing systems along with the connectors, posts, and hardware that go with them, plus technical support if you get stuck mid-spec.

Glassrailingstore

  • Request a frameless glass railing quote when you want a clean, post-minimal look and need help matching connectors to your glass thickness.
  • Reach out for channel or base shoe guidance when your project involves a long, continuous run rather than individual panels.
  • Contact our team for installation questions before you order, not after the glass arrives.

Sources

Verify code details directly: ICC’s R308.4.4 change summary and American Wood Council’s guardrail load criteria.

FAQ

What are the different types of glass railing systems?

Glass railing systems are generally grouped as framed, semi-frameless, or frameless, depending on how much metal frame surrounds the glass. Within each type, the connector hardware, whether clamps, spigots, or channel systems, determines how the panels attach to the structure.

What are some common accessories for glass railings?

Common accessories include handrails, base shoes or channels, gaskets and glazing tape, and post caps, alongside the connectors themselves. Isolating pads are also standard practice anywhere glass meets metal, since they prevent point loading and corrosion between dissimilar materials.

What are the different types of glass brackets?

Glass brackets typically fall into clamp-style brackets, which grip the panel edge without drilling, and patch fitting brackets, which require precisely drilled holes for point-load connections. The right choice depends on whether the glass is drilled or undrilled and the load the bracket needs to carry.

How do I install a glass railing?

Installation starts with confirming your substrate can anchor the chosen connector, whether that is a concrete slab for a spigot or blocking for a channel system, then setting the hardware to the manufacturer’s torque and spacing specs. Structural glass baluster installations, especially those without a top rail, often warrant a professional installer or engineer given the load and code requirements involved, as outlined in the ICC’s code change summary.

What connector type works best for a pool fence?

Top-mount spigots are the most common choice for pool fencing because they anchor directly into the deck and allow water to drain without pooling around the hardware. Marine-grade 316 stainless is worth specifying given the constant exposure to pool chemicals and moisture.
