Homeowners: Missing 4 Inches of Slab? Pick Base Shoe or Post Railing
Pick a base shoe when you want an uninterrupted glass wall on a solid, thick concrete slab. Pick post-mounted railing when you’re facing high wind exposure, a thinner or wood substrate, or a retrofit where core-drilling isn’t an option. The trade-off in each case: base shoe demands strict drainage detailing or the channel traps water, while posts sacrifice some of that clean sightline for structural flexibility.
TL;DR:
- Base shoe systems require a minimum of four inches of structural concrete and thicker glass, making them suitable only for solid, thick slabs.
- Post-mounted railings perform better in high wind areas and on substrates like wood or steel, with less strict drainage requirements.
- Installing a hybrid system with base shoe in straight runs and posts at corners optimizes aesthetics, load capacity, and site constraints.
- Routine maintenance includes checking anchors and drainage, especially for base shoe channels prone to water trapping and gasket wear.
- Accurate slab measurement and drainage planning are critical before choosing and installing the system to avoid costly substrate or drainage issues later.
Table of Contents
- Base Shoe vs Post Railing: A Quick Comparison
- What Is a Base Shoe and How Does It Perform?
- How Post-Mounted Railing Systems Work
- Sightlines, Load, Substrate, and Cost Side by Side
- Which System Should You Choose?
- What Should You Verify Before Installation Begins?
- Maintenance and Lifecycle Realities You Should Budget For
- How Glassrailingstore Supports This Decision
- A Practical Heuristic Worth Repeating
- Get a Frameless or Post-Mounted Quote
- Sources
- FAQ
Base Shoe vs Post Railing: A Quick Comparison
Before you fall in love with either look, check what your slab and your wallet can actually support.
Base shoe (U-channel):
- Nearly invisible hardware, the closest thing to a floating glass wall
- Needs thicker glass on exposed or windy sites, typically starting around half-inch tempered or laminated panels
- Requires a solid concrete substrate with real depth and embedment
Post-mounted:
- Visible posts every few feet, but far more forgiving on structure
- Often allows thinner, less expensive glass because posts share the load instead of one continuous channel bearing it all
- Works on wood-framed decks, thinner slabs, and steel with the right hardware
Pro Tip: Measure your slab before you fall in love with a design. A gorgeous frameless rendering means nothing if your concrete can’t hold the anchors.
Base shoe systems often run installers cite roughly 4 inches of structural concrete as a baseline for adequate anchor embedment. Posts, by contrast, typically cost less per linear foot for comparable spans, since they need less glass thickness to hit the same load rating.
What Is a Base Shoe and How Does It Perform?
A base shoe, sometimes called a U-channel, is a continuous aluminum or stainless track that grips the entire bottom edge of a glass panel. Instead of a handful of point supports, the load spreads across the whole run as a single line. That’s what gives base shoe systems their reputation for rigidity, and it’s why a base shoe cradles the whole bottom edge in a continuous channel, distributing weight evenly and tolerating a slightly uneven floor better than point-mounted hardware.
That rigidity comes with strings attached. Engineers generally want a minimum structural concrete depth and confirmed anchor embedment before signing off, because the channel has to resist moment loads without cracking the slab underneath it.
Where base shoe wins:
- Long, straight runs where an unbroken view matters most
- Panel swaps are simpler since there’s no post to work around
- Public guardrails where continuous line-load support simplifies meeting code-driven load specs
Where it struggles:
- Drainage. Outdoor channels need weep holes and slope, or trapped water degrades gaskets and anchors over time
- Windy or coastal sites often push you toward thicker, pricier glass
- Installation demands more precise engineering than a simple post footing
How Post-Mounted Railing Systems Work
Posts break the load into discrete points instead of one continuous line, spaced every few feet along the run. That sharing effect is the whole story: post-mounted systems provide superior wind-load capacity and let you use thinner glass panels than a heavy U-channel design would allow for the same span.
Substrate flexibility is where posts really separate themselves from base shoe. They work on concrete, on reinforced wood framing, and on steel, with core-drilled anchors, surface-mounted bases, or through-bolted plates depending on what’s underneath. That range makes posts the practical answer for retrofits where the existing structure wasn’t built with a heavy channel in mind.
Posts make sense when:
- The site sees high wind exposure, coastal storms, or elevated wind zones
- You’re spanning long distances where point support beats a continuous channel
- You’re retrofitting an older deck or balcony with a substrate that can’t take a base shoe
The trade-off:
- Sightlines break every few feet instead of running clean
- Maintenance shifts to checking post bases, weld points, and cap fasteners rather than gaskets in a channel
Sightlines, Load, Substrate, and Cost Side by Side
| Factor | Base shoe (U-channel) | Post-mounted |
|---|---|---|
| Aesthetic / sightlines | Nearly invisible, continuous glass wall | Visible posts break the view every few feet |
| Glass thickness required | Often thicker, especially in wind exposure | Often thinner for the same load rating |
| Substrate compatibility | Needs solid, thick concrete | Works on concrete, reinforced wood, steel |
| Wind load performance | Strong on rigid slabs, limited on thin ones | Generally stronger across variable conditions |
| Installation complexity | Higher, precise embedment and drainage detailing | Moderate, more forgiving anchoring methods |
| Typical cost per linear foot | Can run higher due to glass thickness and labor | Often lower for comparable spans |
| Maintenance and drainage | Requires weep holes, slope, and periodic checks | Simpler drainage, but more hardware points to inspect |
Real projects don’t always force a binary choice. A hybrid approach, using base shoe along the primary view corridor and switching to posts on exposed corners or long spans, is a commonly specified solution when a single system can’t satisfy both the view and the structural demands.
Which System Should You Choose?
Run through these checks before committing to either system:

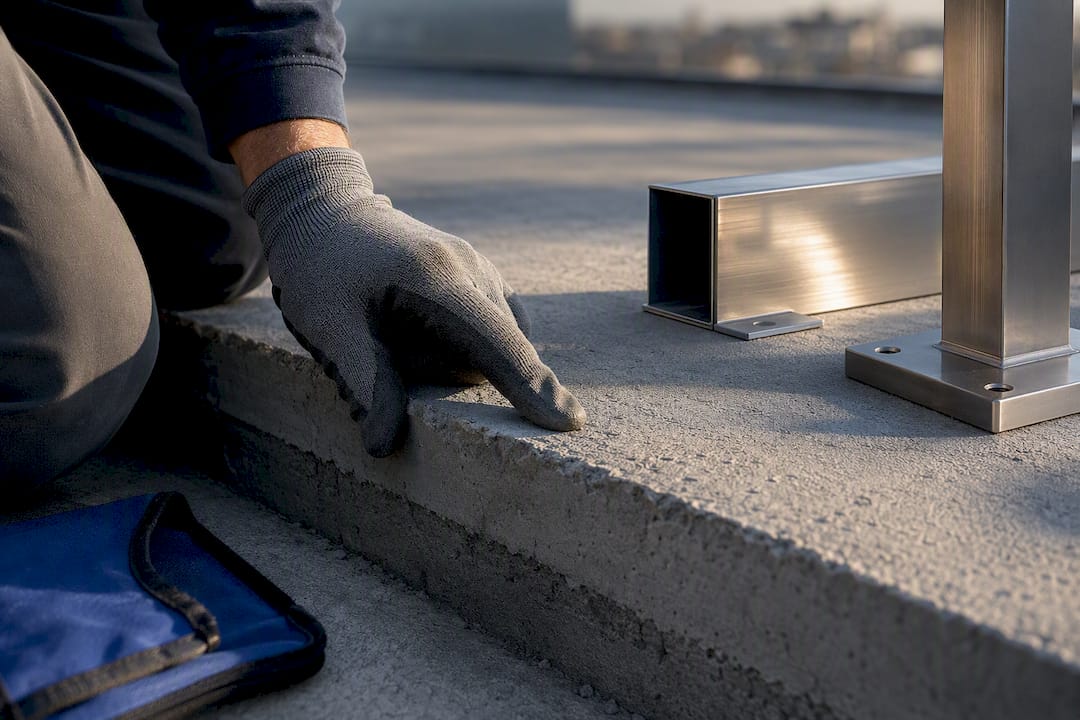

- Test your slab. Confirm concrete thickness and get a probe or core sample if you’re unsure. Thin or cracked slabs point you toward posts.
- Assess wind exposure. Coastal, rooftop, or elevated sites generally favor posts or thicker base shoe glass rated for the local wind zone.
- Map your run geometry. Long straight runs favor base shoe. Curves, corners, or stepped landings often favor posts or standoffs.
- Set your budget. If glass thickness is driving cost up, posts might bring the per-foot price down without sacrificing safety.
- Book a site inspection. A quick visit to check slab depth and drainage paths beats guessing from a floor plan.
Red flags for posts: rooftop installs, coastal high wind, thin or unknown substrate. Red flags for base shoe: no drainage plan, uncertain slab depth, budget that can’t absorb thicker glass.
Pro Tip: If you can’t confirm slab thickness without cutting into the concrete, assume you need posts until an engineer proves otherwise. It’s the safer default.
What Should You Verify Before Installation Begins?
Feasibility comes down to a handful of site facts that no design rendering can answer for you.
- Confirm minimum concrete depth and anchor embedment for base shoe. This is not a guess. It needs an engineer’s sign-off when slab thickness is anywhere near the margin.
- Choose your anchoring method for posts. Core-drilling into concrete is common, but surface-mounted bases with backing blocks work well on wood-framed decks.
- Plan drainage before you order hardware. Outdoor base shoe runs need weep holes and a slight slope inside the channel, and rooftop or elevated installations need waterproofing coordination worked out early, not after the membrane is already down.
- Request PE-stamped drawings whenever the run is long, the site is windy, or local code requires line-load documentation. Check your jurisdiction’s building code requirements before finalizing panel sizes.
Maintenance and Lifecycle Realities You Should Budget For
Neither system is maintenance-free, but the failure points differ. Base shoe channels trap debris and water if drainage wasn’t designed correctly, and installations lacking designed drainage commonly lead to maintenance issues down the road.
Annual inspection checklist:
- Check set screws and gaskets for looseness or cracking
- Inspect anchor points for corrosion, especially near coastal air
- Clear weep holes and drainage slots of debris before the wet season
- Look for pooling water inside the channel after rain
Panel replacement on base shoe means loosening the channel clamps and sliding the panel out, while post systems typically just require releasing the cap rail and glass clips at each post. Trapped water inside a channel accelerates gasket wear and anchor corrosion faster than exposed hardware ever will.
How Glassrailingstore Supports This Decision
Glassrailingstore builds its systems around tempered safety glass and marine-grade stainless hardware, the same materials engineers specify for both base shoe and post-mounted designs. Its building code resource walks through guardrail height and load requirements, and its team can point you toward PE-stamped drawings when your site calls for one. Requesting a quote is an effective way to find out which system a slab actually supports.
A Practical Heuristic Worth Repeating
Most people fall for the rendering before they’ve checked the slab. Flip that order. Measure concrete depth and confirm drainage before choosing a finish, because a design that looks perfect on paper falls apart fast against a substrate that can’t hold it or a channel that never drains. Fix the site first. The aesthetics will follow.
— Fuanne
Get a Frameless or Post-Mounted Quote
Some suppliers sell hardware such as tempered glass panels, base shoe channels, and post systems with marine-grade stainless fittings, often coupled with planning support to assist with determining what a slab can hold.
If you already know your run is straight and your slab checks out, Frameless Glass Railings run without published pricing on that page, so a direct quote is the fastest way to get real numbers. Semi-frameless post systems price between $165 and $250 per linear foot, while fully framed options run $100 to $130 per linear foot, both detailed on the glass railing cost page. Ready to move forward? Request a frameless glass railing quote today and get a planning conversation started before you order a single panel.
Sources
- Glass Railing Mounts: Spigots vs Base Shoe vs Standoffs
- Spigot vs Standoff vs Base Shoe for Frameless Glass Railings - METECH
- Base Shoe vs. Post Mount Glass Railing | INFINITYGLASS™
FAQ
What type of porch railing is best?
It depends on your porch’s structure and exposure. A base shoe works well on a solid concrete porch slab for an open view, while post-mounted railing handles wood framing or windier locations more reliably.
What is the 4-ball rule for railing?
This typically refers to the code requirement that a 4-inch sphere shouldn’t be able to pass through any gap in a guardrail, preventing small children from slipping through. Both base shoe and post-mounted glass systems can meet this rule since the glass panel itself, not balusters, forms the barrier.
What is the base of a railing called?
The base is the hardware that anchors the railing to the floor or slab, whether that’s a base shoe channel or individual post bases. On glass railings, this is often the base shoe itself, the continuous track that holds the panel’s bottom edge.
What is the code for deck railing posts?
Codes vary by jurisdiction, but they generally address minimum guardrail height, spacing, and load resistance, with commercial and high-occupancy projects often requiring PE-stamped drawings. Check your local building code guide for the specific height and load requirements that apply to your project.
