Wind-Exposed Glass Railing: Panel Sizing, Loads, Deflection
Glass railing projects in wind-exposed locations need more than clean lines and clear views, they need disciplined engineering thinking. When your deck, balcony, or rooftop is in open terrain, near water, or elevated above surrounding roofs, wind load can govern panel sizing, hardware selection, and acceptable deflection.
This guide explains how wind load interacts with frameless glass railing system, what "panel sizing" means in practice, and when an engineer review is the next step. We keep this Canada-focused, measurement-driven, and safety-first, so you can build with clarity and confidence.
1. Start With the Reality of Wind: Pressure, Height, and Exposure
Wind load is not a single number you can guess from a weather app. In building design, wind is translated into surface pressure, which changes with site exposure, building height, and local code requirements.
In Canada, design wind pressure for components and cladding is commonly expressed as:
- p = Iw, q, Ce, Ct, CpCg
Each factor has a role:
- Iw, importance factor tied to building category and risk.
- q, reference velocity pressure for the location.
- Ce, exposure factor tied to height and surrounding terrain.
- Ct, topographic factor relevant near ridges and escarpments.
- CpCg, pressure coefficients dependent on surface zone and windward or leeward effects.

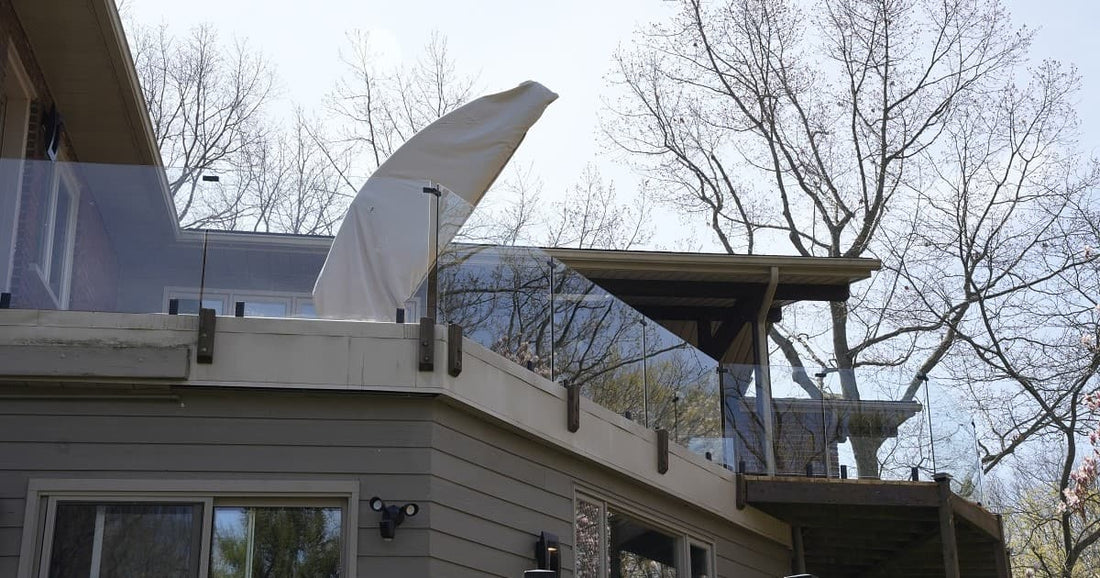

For a glass guardrail, the exposed surface is typically the full exposed area of the guard line. This is especially true for exterior glass railings, where the glass is the main wind-catching plane.
Field note: Wind can govern design even on low rise glass deck railing when the railing is near a corner, in open exposure, or above a slope. If you can see long distances without obstructions, treat the site as wind sensitive.
2. Panel Sizing: What You Control, What the Site Controls
Panel sizing is the intersection of code loads, glass type, glass thickness, edge support, and the system's restraint of the glass. You can control some inputs, and you must respect others.
Inputs you can control
- 12mm tempered glass, common starting point for many frameless glass guardrail applications; strength and clarity.
- Panel width, narrower panels reduce deflection and bending.
- Panel height, shorter panels reduce wind area and moment.
- Support condition, continuous base shoe versus discrete glass spigots, cap rail versus topless.
Inputs the site controls
- Design wind pressure, location specific.
- Exposure, open terrain and waterfront conditions raise wind demands.
- Mounting substrate, concrete curb, wood framing, steel, or waterproofed assemblies behave differently under load.
When you see failures in high wind areas, they are usually not glass breakage. They are typically:
- excess deflection that feels unsafe, even when stresses are within limits,
- movement in the substrate or fascia detail,
- fasteners or anchors not engineered for the actual load path,
- hardware corrosion and loosening in coastal environments.
If your project is wind exposed, adding a cap rail is not only about graspability and finish. Cap rail ties the line together and reduces perceived stiffness issues. For a crisp architectural profile, the square handrail provides a sleek, minimal finish when a topless design is not suitable.
3. Wind Load Meets Glass Design: ASTM E1300 and Practical Checks
Once you know the design wind pressure, you need a method to determine if the selected glass can resist that pressure for the panel dimensions and support conditions. In North America, ASTM E1300 is a common reference for preliminary assessments of glass under uniform loads like wind.
Practical takeaways for railing projects:
- Support conditions change the result. A panel continuously supported at the bottom behaves differently than a panel with point supports.
- Short duration wind loads differ from sustained loads like snow, so design checks vary by load case.
- Deflection is a design constraint, not just strength. Excess movement can drive thicker glass, smaller panel widths, or a cap rail, even when strength checks pass.
For many residential and light commercial rail lines, 12mm tempered glass is the standard starting option. In more exposed conditions, engineers may specify laminated constructions or alternate interlayers for post-breakage performance and deflection control.
4. Deflection: What "Too Much Movement" Looks Like
Deflection is how much the glass bends under load. In wind, deflection is often the first thing occupants notice. Panels can flex, vibrate, or feel springy at the top edge.
Design limits vary by system and application. For building envelope framing, limits like L/175 are common for members supporting glass under wind load, with caps such as 3/4 inch in some contexts. Guards and railings are not curtainwalls, but human perception matters. Visible movement can undermine confidence, and repeated movement can fatigue hardware and anchors.
Deflection drivers in frameless rail
- Taller glass increases lever arm and top edge movement.
- Wider panels increase span, bending, and stress.
- Topless glass railing increases demand on base restraint because there is no top member to distribute load.
- Substrate flexibility, for example, wood rim joists, can dominate overall deflection even if the glass is thick.
Practical sizing strategy for wind exposed sites:
- Reduce panel width before increasing glass thickness, when layout allows.
- Use continuous restraint, such as an engineered base shoe, rather than relying solely on discrete spigots.
- Consider a cap rail when design intent does not require a topless look.
On long, straight railing lines, cap rail alignment matters. The horizontal adjustable connector for round caprail helps maintain a true top line on sites where posts or glass lines are not perfectly uniform.
5. Hardware and Materials in Wind: Spigots, Connectors, and 2205 Stainless
In wind-exposed railings, hardware is part of the structural system. The glass, clamps, spigots, connectors, cap rail, anchors, and substrate must work as a single load path.
Key hardware concepts
- Glass spigot spacing affects panel stability and deflection. More restraint points reduce movement but increase layout complexity.
- Glass-to-glass connector details align panels and control relative movement at seams, depending on system intent.
- Cap rail distributes line loads, reduces vibration, and provides a finished edge.
Material selection for exposure and durability
For exterior railing near coastal or de-icing salt exposure, corrosion resistance matters. Specify higher-corrosion-resistant stainless alloys, such as stainless steel 2205, for critical exterior hardware. Use a powder-coated finish where appropriate, and protect the coating during assembly to preserve weather-resistant durability.
Key hardware selection questions:
- Is the site coastal, poolside, or exposed to de-icing salts?
- Are dissimilar metals isolated to reduce galvanic corrosion?
- Are anchors engineered for the substrate and edge distances?
- Does the system provide adjustability for plumb and alignment after tightening?
For wind exposed decks, tight, predictable cap rail connections reduce rattles and misalignment over time. The Square Caprail Corner Connector is a practical detail for a modern look with adjustability to keep the top line consistent.
6. When You Need an Engineer Review, and What to Prepare
An engineer review is required when wind exposure, height, or system choices move the project outside standard rule-of-thumb territory. This is common for:
- rooftop terraces and high rise balconies,
- open exposure sites, waterfront, or hilltop conditions,
- extra tall guards or privacy wind screens,
- topless glass railing lines with long continuous runs,
- commercial applications requiring approvals and documentation.
Prepare a focused review package to keep the process efficient. Include:
- Site location, project address or nearest city.
- Guard height, for example 36 inch, 42 inch, or 48 inch.
- Panel widths and a simple elevation sketch.
- Mount condition, top mount, fascia mount, curb mount, and substrate type.
- System intent, topless versus cap rail, base shoe versus glass spigots, connector strategy.
At The Glass Railing Store, our mission is to make architectural-grade systems accessible and easier to install. That starts with measurement clarity. If you are unsure, submit your measurements for a custom quote, and ask for guidance on panel breaks, hardware counts, and lead times before ordering. For project support, call our team at 1-800-555-0123 or use the contact form on our site for guidance.
Lead times and policy note: Custom glass panels are made to specification. Confirm all field measurements and project conditions before fabrication. Custom items are typically final sale due to customization. Typical lead times for custom glass panels are 4 to 6 weeks, confirm current lead times on your quote. Shipping and site readiness can affect total delivery time.
FAQs: Wind Exposed Glass Guardrail Planning
1. Is 12mm glass enough for high wind?
Sometimes, but not always. 12mm tempered glass is a common baseline for many guard layouts, but wind pressure, panel height, panel width, and support condition may require thicker or laminated glass constructions.
2. What causes excessive deflection in a frameless glass railing?
Tall panels, wide panels, topless designs, and flexible mounting substrates are common drivers. Reducing panel width and improving base restraint often improves performance.
3. Do I need a cap rail in wind exposed locations?
Not in every case. A cap rail can reduce perceived movement and help tie long runs together. If you want a topless look, plan for stricter panel sizing and stronger base restraint.
4. What is the difference between base shoe and spigots for wind?
A continuous base shoe provides more uniform restraint along the bottom edge, which helps control deflection. Spigots create discrete restraint points, which can be effective, but spacing and substrate engineering become critical.
5. When should I involve an engineer?
Involve an engineer for rooftop terraces, exposed sites, tall wind screens, long topless runs, and any commercial project that needs stamped documentation.
