The Role of Base Shoes in Frameless Glass Railing Systems

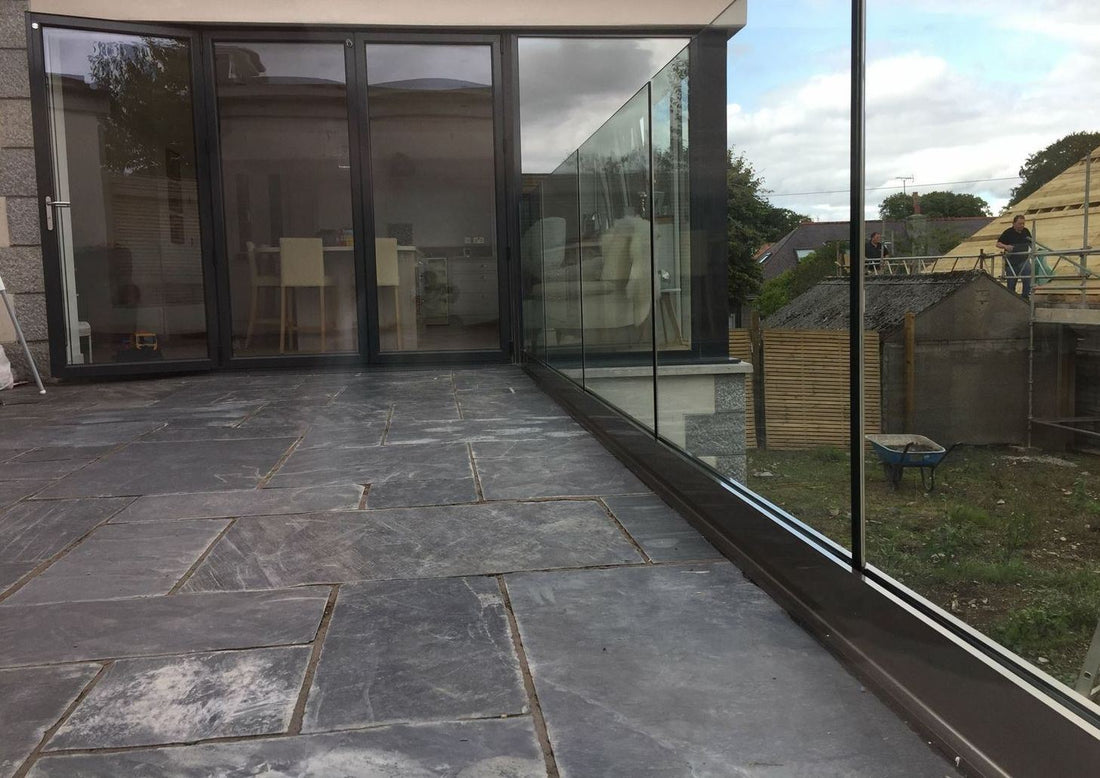

Walk past a sleek modern building with floor-to-ceiling glass railings, and there's a good chance you're looking at a base shoe system without even knowing it. The continuous metal channel at the bottom, barely visible but holding everything together, is a base shoe system. That's the base shoe doing its job.

Most people focus on the glass panels themselves. The base shoe plays a crucial role in enhancing the drama, views, and light transmission of the panels. But the real engineering happens at the bottom edge, where glass meets the mounting surface. Base shoes enable the use of frameless glass railings in applications where other mounting methods prove inadequate.

This guide breaks down everything you need to know about base shoes: how they work, when they make sense, and why choosing between base shoes and alternative mounting systems matters more than most people realize.

What Base Shoes Actually Do

A base shoe is basically a continuous U-shaped channel that runs along your mounting surface. Glass panels sit inside this channel, held in place by gaskets, shims, and sometimes mechanical fasteners. The channel itself gets secured to the deck, balcony, or floor with heavy-duty fasteners.

Think of it like a track that glass panels slide into. The channel provides lateral support along the entire bottom edge of each panel instead of supporting glass at just two or three points like spigot systems do.

The Engineering Behind It

Base shoes work through continuous load distribution. Instead of concentrating forces at individual mounting points, they spread loads across the entire length of each panel. This distribution allows thinner aluminum or stainless steel channels to support surprisingly tall, heavy glass panels.

The channel's geometry matters tremendously. Most base shoes have walls that are at least 1/4 inch thick with reinforced edges. The U-shaped design generates a moment of inertia, which provides the channel with strength against bending forces.

When someone leans against a railing or the wind pushes on the glass, forces transfer through the panel and into the base shoe. The continuous support prevents localized stress concentrations that could crack glass or fail at mounting points.

Understanding and comparing different frameless railing hardware systems shows you how base shoes differ fundamentally from point-supported mounting methods.

Base Shoe vs Spigot Systems

The choice between base shoe and spigot mounting isn't just aesthetic. Each system has distinct advantages and limitations that improve it suited for particular applications.

Base Shoe Advantages

Continuous support along the entire panel bottom creates exceptional stability. This matters especially for taller installations above 48 inches, where wind loads and deflection become serious concerns.

Base shoes handle uneven mounting surfaces better than spigot systems. The continuous channel can accommodate minor variations in deck levels that would cause alignment nightmares with individual spigots.

Installation often goes faster with base shoes once you get the channel positioned correctly. You're not placing and aligning dozens of individual mounting points. Please ensure the channel is straight and level, secure it properly, and you will have created a mounting platform for all your panels simultaneously.

Larger panel sizes become practical with base shoe support. You can span wider distances between glass-to-glass connections compared to spigot systems that need more frequent support points.

When Spigots Work Better

Spigot systems offer maximum flexibility for complex layouts with angles, curves, or irregular spacing. Each mounting point adjusts independently, making them ideal for custom configurations.

The hardware footprint is smaller with spigots. Each mount occupies maybe 6 inches of linear space. Base shoes need several inches of mounting surface depth, which matters on narrow ledges or in tight spaces.

Aesthetically, some people prefer the ultra-minimalist look of spigot systems. The spigot mounting systems as an alternative create that floating appearance because there's no continuous channel visible at the base.

Replacement and repairs are simpler with spigots. A damaged panel comes out by removing hardware at just two points. Base shoe installations might require disturbing adjacent panels to remove one.

System Comparison Overview

Material Options and Specifications

Base shoes come in different materials and profiles designed for specific applications and loads.

Aluminum Base Shoes

Aluminum channels are the standard for most residential and light commercial installations. They're lightweight, don't rust, and are easy to work with during installation.

Quality matters significantly with aluminum. Look for 6063 T6 alloy, which provides good strength with excellent corrosion resistance. Channel walls should be at least 1/4 inch thick for adequate rigidity.

Powder coating or anodizing protects aluminum from weathering and provides color options. Black, bronze, and mill finish (raw aluminum) are most common. The coating also prevents oxidation that would leave white residue on glass edges.

Stainless Steel Options

High end installations often specify stainless steel base shoes for maximum durability and corrosion resistance. Marine grade 316 stainless works best for coastal locations where salt spray destroys lesser materials.

Stainless steel allows thinner channel walls while maintaining strength. A 3/16-inch-thick stainless channel can match the performance of 1/4-inch aluminum.

The catch? Cost and weight. Stainless steel base shoes run 2 to 3 times more than aluminum equivalents. They're also significantly heavier, complicating handling during installation.

Hybrid and Clad Systems

Some manufacturers offer aluminum channels with stainless steel cladding or trim. These systems provide aluminum's light weight and economy with stainless steel's appearance and corrosion resistance at contact points.

Hybrid systems make sense for midrange projects that need better performance than basic aluminum but can't justify full stainless steel costs.

Installation Considerations

Base shoe installation requires precision and proper sequencing to achieve professional results.

Surface Preparation

Your mounting surface needs to be clean, level, and structurally sound. Any irregularities transfer directly to the installed channel, affecting panel alignment and appearance.

Concrete surfaces should be smoothly finished without significant variations. Wood decks need solid blocking underneath fastener locations. Composite decking materials require manufacturer-specific fastener recommendations.

Check the level carefully along the entire run before securing channels. Even a slight slope creates alignment problems that compound across multiple panels.

Channel Positioning and Fastening

Mark your railing centerline precisely. Base shoe channels must be perfectly aligned with the centerline; otherwise, the panels will not sit properly in the channels.

Predrill fastener holes to prevent wood from splitting or concrete from cracking. Hole spacing typically runs 12 to 16 inches depending on system specifications and anticipated loads.

Use quality fasteners appropriate for your substrate. Lag screws for wood, concrete anchors for masonry, and through bolts for metal framing. Don't skimp here because fastener failure means complete system failure.

Following the detailed installation guide for base shoe systems ensures you don't miss critical steps that compromise performance.

Glass Panel Installation

Setting panels into base shoe channels requires care and proper technique. You can't just drop glass into the channel and call it done.

Most systems use setting blocks that support panels at specific points while allowing for thermal expansion. These blocks are typically positioned at 1/4 points along each panel's length.

Gaskets or rubber channel liners cushion glass edges and prevent direct glass-to-metal contact. They also provide some adjustment capability during installation.

Shims help achieve the perfect plumb and level on each panel. You'll likely need different shim thicknesses at various points to compensate for substrate irregularities.

Sealant around panel edges provides weatherproofing for exterior installations. Use quality silicone rated for outdoor exposure and glass contact. Poor sealant fails within a few years, allowing water infiltration.

Learning from comprehensive frameless system installation guidelines helps you avoid the common mistakes that create problems.

Applications Where Base Shoes Excel

Certain projects practically demand base shoe systems based on their specific requirements and conditions.

Commercial Buildings

High-rise balconies, office building atriums, and shopping mall overlooks often specify base shoe systems because they handle the loads and panel sizes these applications require.

Building codes for commercial installations are stricter than residential requirements. The continuous support and engineered load distribution of base shoe systems simplify code compliance.

Maintenance considerations favor base shoes in commercial settings. The robust construction handles abuse better than more delicate mounting systems. Cleaning crews, moving equipment, and constant use take their toll over years of service.

Pool Enclosures

Pool codes often mandate taller railings, typically 48 to 60 inches. Base shoe systems handle these heights better than alternatives while providing the unobstructed view pool owners want.

The humid, chemically aggressive environment around pools accelerates corrosion. Stainless steel or well-coated aluminum base shoes resist this environment far better than plated hardware used in some spigot systems.

Looking at base shoe applications in commercial settings shows you the range of pool and aquatic installations where these systems work best.

High Wind Locations

Coastal properties, high-rise buildings, and exposed hilltop locations face serious wind pressure. Base shoes distribute wind loads more effectively than point-supported systems.

The continuous channel prevents individual panels from acting independently. Wind pressure on one panel gets shared across adjacent panels through the base shoe, reducing stress on each panel.

Many coastal jurisdictions specifically require continuous support systems for exposed locations. Local building officials understand that point-supported railings can fail in extreme wind events.

Long Straight Runs

Projects with extensive straight sections benefit from base shoe efficiency. Once you position and secure the channel, you create a mounting system for dozens of panels in a single operation.

The continuous nature eliminates cumulative alignment errors that plague spigot installations over long distances. Each panel references the same channel, keeping everything lined up.

Common Installation Mistakes

Even experienced installers make errors with base shoe systems when they don't understand critical details.

Inadequate Fastening

Using too few fasteners or the wrong fastener types creates dangerous installations. The channel must stay firmly attached under maximum design loads.

Calculate fastener requirements based on panel height, expected wind loads, and substrate material. Don't just follow minimum spacing guidelines. Harsh environments and tall panels need more frequent fastening.

Poor Channel Alignment

Channels that aren't perfectly straight show every alignment error in the installed glass. You can't hide a wavy channel with shims and adjustments.

Use straightedges and laser levels when positioning channels. Check alignment multiple times before final fastening. Once secured, correcting alignment problems requires starting over.

Incorrect Shimming and Leveling

Every panel needs proper support from setting blocks and shims. Leaving panels hanging on edge gaskets alone creates stress points that will crack glass eventually.

The shimming pattern matters. Panels need support at roughly quarter points along their length. Supporting only at the ends allows dangerous mid-span deflection.

Insufficient Weatherproofing

Outdoor installations must keep water out of the base shoe channel. Standing water causes corrosion, degrades gaskets, and can freeze in cold climates, causing damage.

Weep holes or drainage slots in the channel are essential for exterior applications. Sealant at panel edges helps but isn't enough by itself.

Cost Considerations

Base shoe systems occupy a specific price range that reflects their material and installation requirements.

Material Costs

Aluminum base shoe channels run $20 to $40 per linear foot depending on profile, thickness, and finish. Add another $10 to $20 per foot for gaskets, shims, fasteners, and sealant.

Stainless steel channels jump to $60 to $120 per linear foot. Performance justifies this cost for demanding applications, but it's hard to swallow for large projects.

Compare material costs to spigot systems where individual mounts run $80 to $150 each. A 40-foot railing using spigots at 6-foot spacing needs 14 to 16 mounting points. That's $1,120 to $2,400 just for basic hardware before installation.

Installation Labor

Base shoe installation takes different skills than spigot systems but isn't necessarily more expensive. The process is more about careful positioning and alignment than repeated individual adjustments.

Experienced installers often complete base shoe projects faster than equivalent spigot installations once they master the technique. The labor savings can offset higher material costs.

Long-Term Value

Base shoe systems typically need less maintenance than point-supported alternatives. The continuous support reduces stress on individual components and hardware.

Replacement costs favor base shoes when a single panel needs changing. Remove the damaged panel and slide in a new one without disturbing the mounting system. Spigot replacements often require removing and resetting adjacent hardware.

Making the Right Choice

Deciding between a base shoe and alternative mounting systems comes down to matching system characteristics to project requirements.

Start with your mounting surface. Narrow ledges or fascia mounting situations might not accommodate base shoe depth. Spigots work better in space-constrained locations.

Consider panel heights and wind exposure. Anything over 54 inches in exposed locations really should use base shoe support for adequate safety margins.

Think about maintenance access and future panel replacement. Base shoes simplify these tasks compared to systems with more complex hardware.

Budget matters but shouldn't be the only deciding factor. A slightly more expensive base shoe system that installs faster and lasts longer often costs less overall than cheaper alternatives.

Check local code requirements. Some jurisdictions mandate continuous support systems for certain applications regardless of other considerations.

Frequently Asked Questions

1. Can Base Shoes Be Used on Curved Sections?

Base shoes work best on straight runs. Gentle curves might be possible by cutting relief notches in the channel, but tight curves require spigot or other point-supported systems that accommodate angles.

2. What's the Maximum Panel Height for Base Shoe Systems?

Most residential base shoe systems safely support panels up to 60 inches. Heavy duty commercial channels can handle 72 inches or more when properly engineered and installed.

3. Do Base Shoes Work on Wood Decks?

Yes, but you need solid blocking underneath fastener locations. The loads concentrate where fasteners attach the channel, requiring adequate backing to prevent deck damage or system failure.

4. How Do You Replace a Single Panel in a Base Shoe System?

Remove glass-to-glass connectors if present, carefully lift the panel out of the channel, slide in the replacement, and reinstall connectors. Adjacent panels typically don't need removal.

5. Can You Mix Base Shoe and Spigot Systems?

Generally, you cannot mix Base Shoe and Spigot Systems on the same railing run. They mount differently and look different. However, you might use base shoes for long straight sections and spigots for corners or angled returns.

6. What Maintenance Do Base Shoes Require?

Check fasteners annually for tightness. Clean debris from channels periodically. Inspect sealant for cracks or gaps every few years. Replace worn gaskets when you notice degradation. Overall, maintenance requirements are minimal.
