Beyond the View: Understanding the Structural Integrity of Glass Railings

When most people see glass railings, they often wonder: aren't they fragile? This common misconception stems from our everyday experience with household glass that breaks easily. However, modern glass railings are engineering marvels designed with strength and safety as top priorities. Let's explore what makes these transparent barriers both beautiful and remarkably sturdy.

The Evolution of Glass Railings in Architecture

Glass railings have transformed contemporary architecture by enabling unhindered views without sacrificing safety. In homes, they provide the impression of greater, more open areas, enhancing staircases, balconies, and patios. In public structures, they enable the creation of sleek, modern appearances while continuing to fulfill public safety standards. It is all part of a trend toward design-oriented solutions that do not compromise function.

Understanding Glass Types and Their Properties

The structural integrity of the glass railing begins with the material of glass. There are two major types that dominate the market: laminated and tempered glass. Tempered glass is subjected to heat treatment where glass is heated at very high temperatures and quenched, thus yielding stable tempered glass panels that can be used for railing systems. This creates compression at the surface and tension within, which provides four to five times its regular strength. When shattered, tempered glass shatters into tiny, relatively harmless fragments rather than jagged shards, considerably reducing potential injury.

Laminated glass consists of two or more lites of glass bonded together by a polyvinyl butyral (PVB) interlayer. This configuration provides excellent post-breakage performance—if the glass breaks, the pieces remain attached to the PVB layer, still maintaining the barrier property. This feature is important in railings where post-impact integrity should be maintained in order to guarantee safety.

Engineering Principles Behind Glass Railing Systems

Glass railings are not just about the glass itself; its mounting systems are equally important to making it stable. There are several designs employed by engineers to create stability and strength.

Spider fittings and standoff systems create a floating appearance by connecting glass panels to structural members with minimal visual effect, a feature of frameless glass railings. These systems are effective in load distribution while maintaining aesthetic appeal. Base shoe and U-channel designs provide robust support by anchoring the bottom edge of glass panels. The U-channel design offers additional strength by surrounding the glass edge, while base shoe designs create a cleaner, more minimalist look.

Each mounting system must be precisely designed to withstand anticipated loads, e.g., the weight of the glass and forces exerted by people leaning against the railing.

Mounting System Comparison

Wind Resistance: A Critical Factor

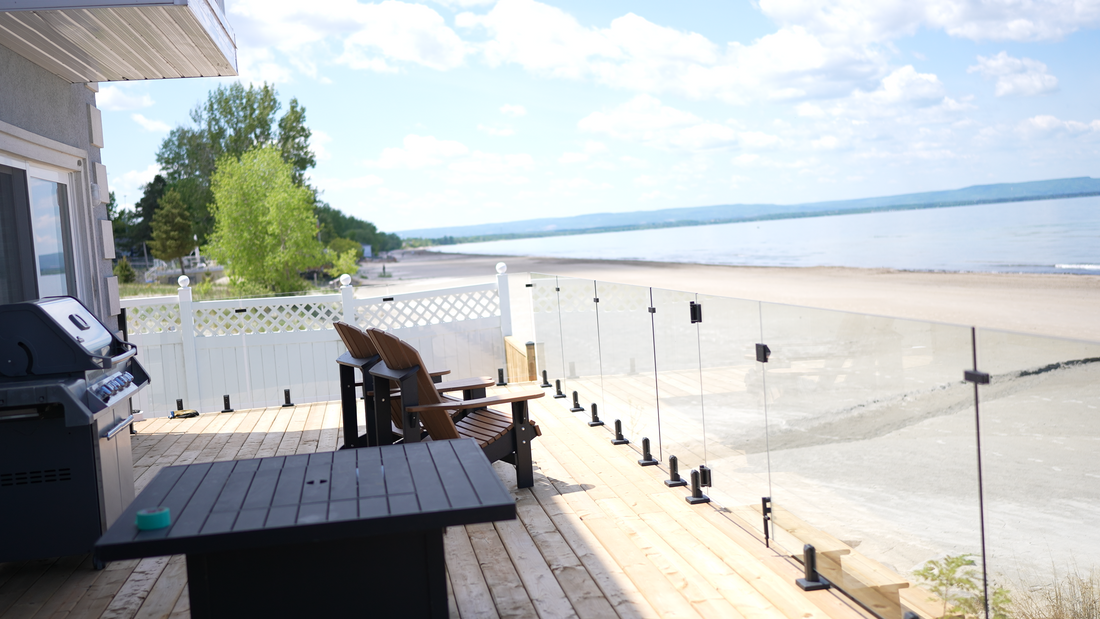

Wind pressure is particularly important for glass railings of coastal and high-rise buildings. Since glass is transparent, wind pressures can exert powerful forces upon such systems. Engineers compute precise wind load calculations based on building height, location, and regional climate to develop proper specifications.

Proper mounting systems are essential to keep glass panels securely in place against wind loads. The fittings must be robust enough to withstand constant pressure and repeated high gusts. Laminated glass is more resistant to wind pressure due to its layered structure, which is why it is a superior choice for challenging environments.

Building Codes and Safety Standards

Glass railings will have to meet strict building codes that vary by location but usually include height and load resistance specification. Typical household railings must be at least 36 inches tall, and commercial installations can require 42 inches.

Load resistance testing ensures railings will withstand certain forces, typically stated in pounds per linear foot. Testing includes drop ball testing, where steel balls are dropped onto glass panels to subject the glass to impact testing, and human impact simulations that measure how railings respond to the force of a body crashing into them.

Attainment of the structural and safety specifications of the installation requires compliance with the codes for glass railing safety.

Installation Considerations for Different Mounting Surfaces

The structural integrity of glass railings depends heavily on proper installation. Different mounting surfaces require different approaches.

When installing in concrete, the surface of the concrete must be in good condition and not cracked. Appropriate anchors must be selected based on concrete type and applied loads. Good drilling is critical to provide stability to the structural integrity of concrete and the system of anchorage.

For wood railings, the structure must be structurally strong to support both weight of railing as well as any other dynamic forces. The timber must be durable and resistant to insect infestation and rot. Secure attachment through proper methods provides stability to the railing over the years. Professionals are highly recommended to install it, as prior experience in preparation of surfaces to mount and the choice of hardware significantly affects the durability and safety of the railing.

For the complete instructions and best practices, refer to our complete glass railing installation guide

Maintenance for Longevity and Safety

Schedules of regular service keep the beauty as well as the structural safety of glass railings intact. Proper cleaners need to be applied—harsh chemicals and abrasives can damage the glass finish or mounting system.

Soap and water or glass cleaner specifically applied with microfiber cloths is ideal for daily maintenance. Do not use high-pressure washing because this will compromise structural elements. Regular inspection should be used to ascertain if there are any signs of glass damage or mounting hardware loosening.

Glass railings, if properly maintained, last for decades and look beautiful and strong, making them a sound long-term investment.

Innovations in Glass Railing Technology

The future of glass balustrades is good with new technology enhancing design and safety. Chemically strengthened glass, made by ion exchange processes, offers added strength while allowing thinner panels. This means there can be more minimalist designs without compromising on strength.

Hybrid composite materials combine different substances to create more flexible, lighter, and stronger mounting systems compared to traditional materials. These advancements expand design ability along with structural performance, demonstrating that glass railing technology is always changing.

Balancing Beauty and Safety

Glass railings represent an excellent marriage of function and design. Their success stems from the ability to provide views while affording necessary protection barriers. When homeowners and architects learn about the structural properties of these systems, they can make informed choices in incorporating them within their settings.

With thoughtful design, fine materials, skilled installation, and appropriate maintenance, glass railings represent a time-proven, exquisite solution. Hardly as brittle as convention has led some to believe, current glass railings are engineered with peace of mind in mind yet also complement architecture in style—demonstrating sometimes, the best design is truly an elegant and sensible one.

FAQ: Glass Railing Structural Integrity

1. To what extent are metal railings stronger against force than glass railings?

Glass railings are as strong as metal railings if they are well designed and well installed. Tempered glass in railings is four to five times stronger than ordinary glass, and laminated glass has very good post-breakage performance. General strength depends on the type of glass, thickness, mounting system, and quality of installation. Existing building codes require glass railings to be subjected to the same load resistance requirements as metal railings to ensure equal safety performance.

2. What if my glass in my railing gets broken?

The response depends on the glass type. Tempered glass will shatter into small, relatively safe pebble-like quality fragments rather than sharp shards, reducing the risk of injury. Laminated glass is safer as it contains a PVB interlayer that holds fragments of glass even after fracture, maintaining the barrier effect of the rail. That is why laminated glass is typically selected where post-fracture performance is critical, e.g., balconies or heights. ".

3. How effective are glass railings in areas with high winds or extreme weather?

High-wind glass railings also carry specialized engineering in order to support high wind pressure. Thicker glass, more heavy-duty mounting systems, and laminated fabrication in some instances are used for sea or high-rise applications. Wind loads are computed by professional engineers on the basis of place, height, and local weather conditions. Correctly designed and correctly installed glass railings are well able to withstand hurricane-level winds and bad weather conditions, though periodical inspection is recommended after bad weather conditions.

4. What are the most prevalent causes of failure of glass railings?

Most glass railing structural failures are the result of installation errors and not defects in material. The most prevalent issues are improper mounting hardware, improper anchoring to the host structure, ignoring thermal expansion, and improper installation of glass to local building codes. Negligent maintenance also can result in long-term failures if the mounting hardware loosens or corrodes. Employment of experienced installers who also understand engineering principles and local building codes significantly reduces failure risk.

5. How long do glass railings last?

Glass railings will last 20+ years if well-designed, installed, and maintained. The glass is highly durable and resistant to weathering, fading, and corrosion. Weak point typically is the mounting and hardware system, which will need regular maintenance or replacement in hostile environments. Maintenance and inspection done correctly, such as tightening loose hardware and cleaning using the proper chemicals, can quite easily double the lifespan of the system overall. Most manufacturers offer 5-10 year warranties, but the actual lifespan is typically much longer with maintenance.
